Tennis Court Lighting

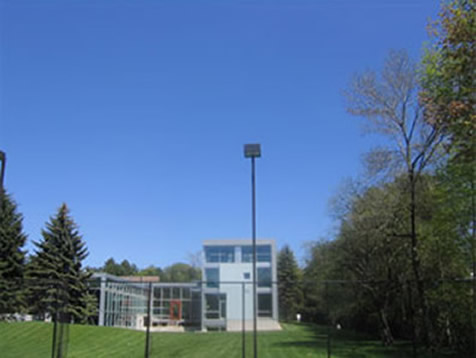

A simple cost effective solution to court lighting. All steel components or galvanized. This flood lighting system is designed for low mounting to provide more light on the playing area, while having a sharp cut-off that limits light spill beyond the playing area.
The 1000W long-life output metal halide lamps have matched series connected capacitors for optimum lamp performance. Lamp life of up to 5 years (12,000 hours), under normal conditions can be expected.

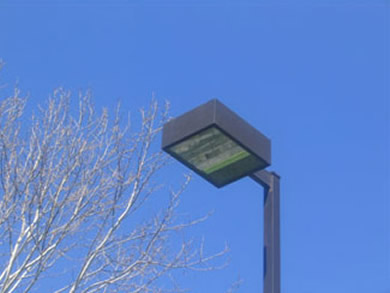

Housing - 1.6mm sheet aluminium, internally welded seams, silicon sealed.
Door - One piece sheet aluminium, piano hinged, sealed from weather and insects by multifoam polyrethane tape.
Lens - 4mm clear tempered glass - thermal and shock resistant, sealed by VHB high temperature acrylic tape.

Standard Finish:

Housing: Black powder coat.
Door: Metallic charcoal powder coat.
Tennis green and other colours available.

Control Gear:

Integral, mounted on removable tray. 1000W constant wattage ballast, power factor corrected.

Input rating:

240 volts - 4.6 amps, 415 volts - 2.8 amps.


1000 watt Metal Halide long life. Manufacturers rating 12,000 hours subject to variance of conditions.


Super highly polished aluminium, forward directional light output, sharp cutoff.

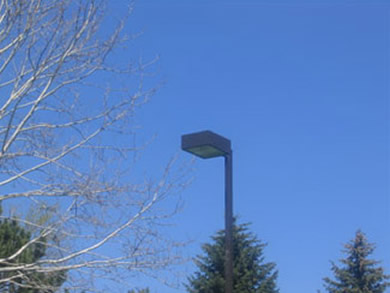

90mm round galvanised. 100mm x 100mm square duracal. Primed and painted to match luminaire. Powder coating available on request.


Available on request.
