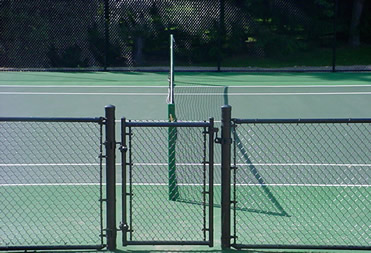

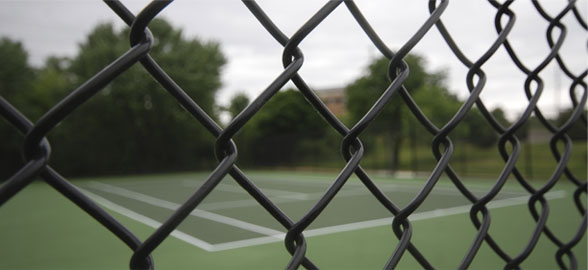

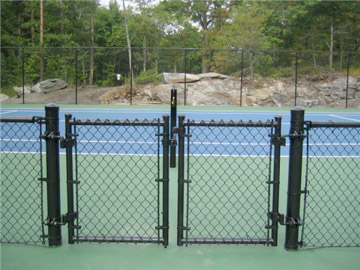

We offer a line of high quality chain-link fence desinged for tennis court
We offer a line of high quality chain-link fence desinged for tennis court.
Tennis court chain-link fence systems are commonly used because they're durable & free of maintenance.
All steel components or galvanized.
Ties used to attach the chain-link fabric to the framework between terminal posts are made from aluminum, resulting in maintenance-free.
Some fittings used in a tennis court system are made from pressed steel and cast iron for added durability.
Outstanding performance in highly corrosive environments provides years of protection.
High impact resistance reduces the chance of damage during product handling and installation Exceptional resistance to ultra violet light prevents premature fading.
Extreme flexibility reduces susceptibility to cracking and chipping, even in changing weather conditions.
Chain Link Fabric
Type: Polyolefin fused and adhered to zinc-coated steel wire.
Gauge: 6, & 9 gauge galvanized core wire.
Mesh: 1-3/4"
Heights: 3' -20'
Colours: Black & Green
Framework
Type 1: 10 mils minimum, over galvanized steel ASMT F 1043, Group 1A, standard
weight pipe, schedule 40. Hot-dipped zinc-coated galvanized.
Type 2: 10 mils minimum, over galvanized steel ASTM F 1043, Group 1C, with minimum yield
strength of 50,000 PSI. Protective coating per ASTM F 1043, external coating Type B.
Colours: Black & Green
Top Rail
Type 1: 1-11/16" O.D. Standard weight pipe (0.140" wall thickness, 2.27 lb./ft.)
Type 2: 1-11/16" O.D. DQ 40 pipe (0.111" wall thickness, 1.83 lb./ft.)
Line Posts
Type 1: 2-3/8" O.D. Standard weight pipe (0.154" wall thickness, 3.65 lb./ft.)
Type 2:2-3/8" O.D. DQ 40 pipe (0.130" wall thickness, 3.12 lb./ft.)
Terminal Posts
Type 1: 3-1/2" O.D. Standard weight pipe (0.203" wall thickness, 5.79 lb./ft.)
Type 2: 3-1/2" O.D. DQ 40 pipe (0.160" wall thickness, 4.64 lb./ft.)
